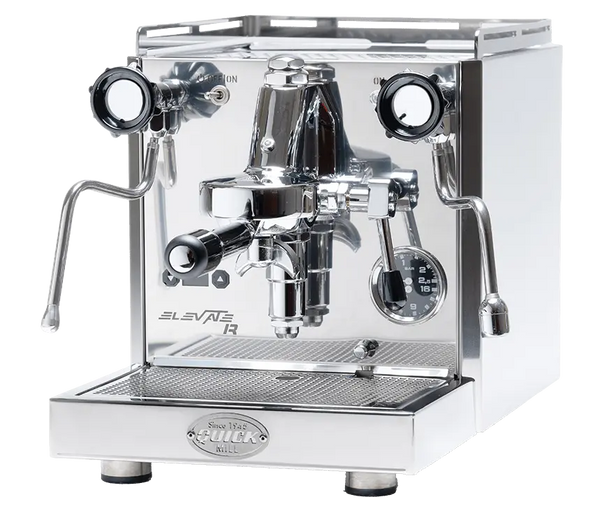

Quick Mill Elevate R
Manuals, maintenance, water filters, troubleshooting and spare parts for your machine, all in one place.
- Heating system
- Dual boiler
- Group
- E61
- Pump
- Rotary pump
- Brew boiler
- 0.75 l
- Steam boiler
- 1.6 l
- Water tank
- 3 l
- Portafilter
- 58 mm
- Temperature
- PID
Maintenance
How to look after your Elevate R
An E61 dual boiler machine is backflushed daily with water and weekly with cleaning detergent, and the group gasket is replaced about once a year. The brew boiler holds the right temperature via PID, so there is no need for a cooling flush. Here is the schedule and the products we recommend.
Good to know about the Quick Mill Elevate R
You can set standby to 30, 60 or 90 minutes. ECO lowers the boiler temperature to save energy when you are not brewing.
With the plumb-in kit (optional) you select WATER TANK NO in the menu. The machine then takes water directly from the mains supply.
Quick Mill says you should fill the tank with soft, clean water and use a water softener if your tap water is hard.
-
Every day
- Purge and wipe the steam wand after every use
- Backflush with water and a blind basket
- Rinse the portafilter and basket, empty the drip tray
-
Every week
- Backflush with Cafetto EVO
- Soak the portafilters and baskets
- Steam tip in milk system cleaner
- Brush the group gasket
-
Every month
- Wash the water tank
- Change the water in the brew boiler and steam boiler as described in the manual
- Soak the shower screen and dispersion plate
-
Every 6–12 months
- Replace the group gasket and shower screen
- Lubricate the cam
- Replace the tank filter (every 2–3 months)
- Replace the cartridge if plumbed in (according to capacity)
Essential maintenance kit
Cleaning detergent, milk system cleaner, blind basket and brush. Everything you need for daily and weekly cleaning.
Cleaning products
Tools
Wear parts for Quick Mill Elevate R
Original parts that fit your model. Replace the group gasket and shower screen every 6–12 months. How to replace them
Upgrades
A bottomless portafilter shows you instantly if your coffee is channelling. A spring-loaded tamper, a distribution tool and a precision basket give you more even extraction, shot after shot.
Water and filters
The right water protects your machine
The target is 2–4 °dH. Do not use distilled water; the machine needs minerals for the level sensor to work.
Water tank
The Elevate R runs from a water tank. Use an in-tank filter and replace it every 2–3 months.
