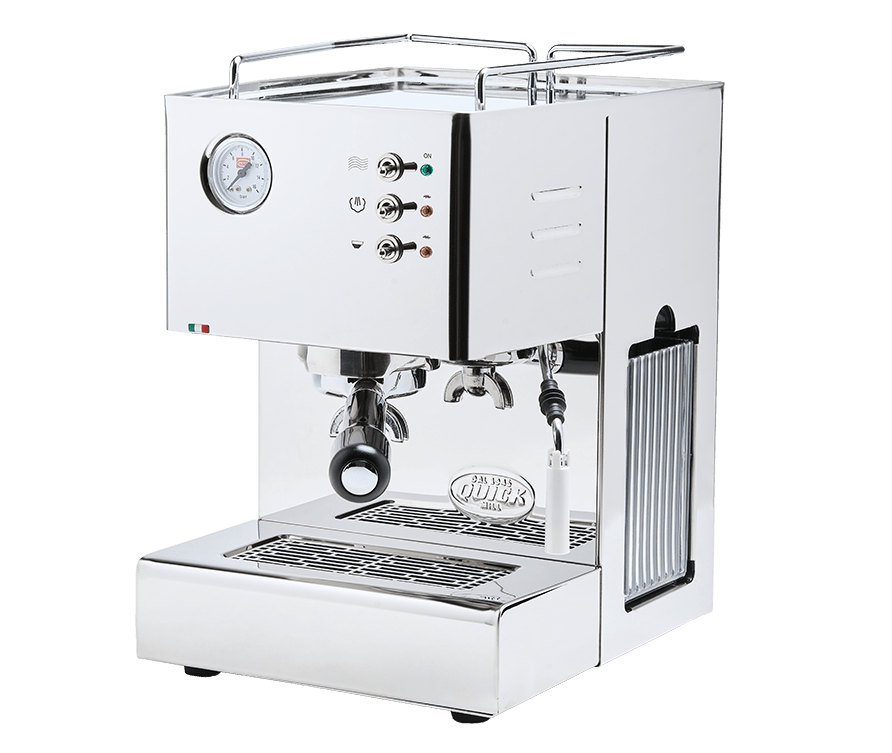

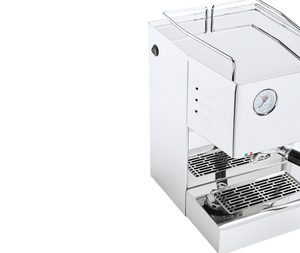

Quick Mill Cassioppea

Quick Mill Cassiopea is a powerful dual-thermoblock machine built entirely of stainless steel for those who want speed, precision, and the ability to brew and steam simultaneously. With two independent thermoblocks – one for espresso and one for steam – the Cassiopea delivers stable temperature and continuous performance even with multiple drinks in a row. The quieter dual vibration pump, pressure gauge, and professional steam wand make the machine a compact yet capable barista station. Easy to control, energy-efficient, and ready for daily use – Cassiopea elevates your coffee experience to a professional level without taking up much space.

Features & Benefits

Dual thermoblock – brew and steam simultaneously

Cassiopea uses two separate die-cast aluminum thermoblocks, both with 0.5 m copper thermocoils, providing:

• Fast heating
• Stable temperature
• Simultaneous brewing and steaming

This offers a flexibility normally only found in larger espresso machines.

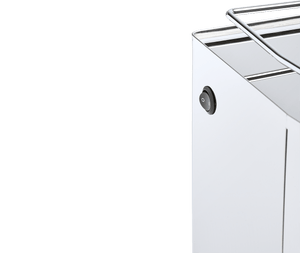

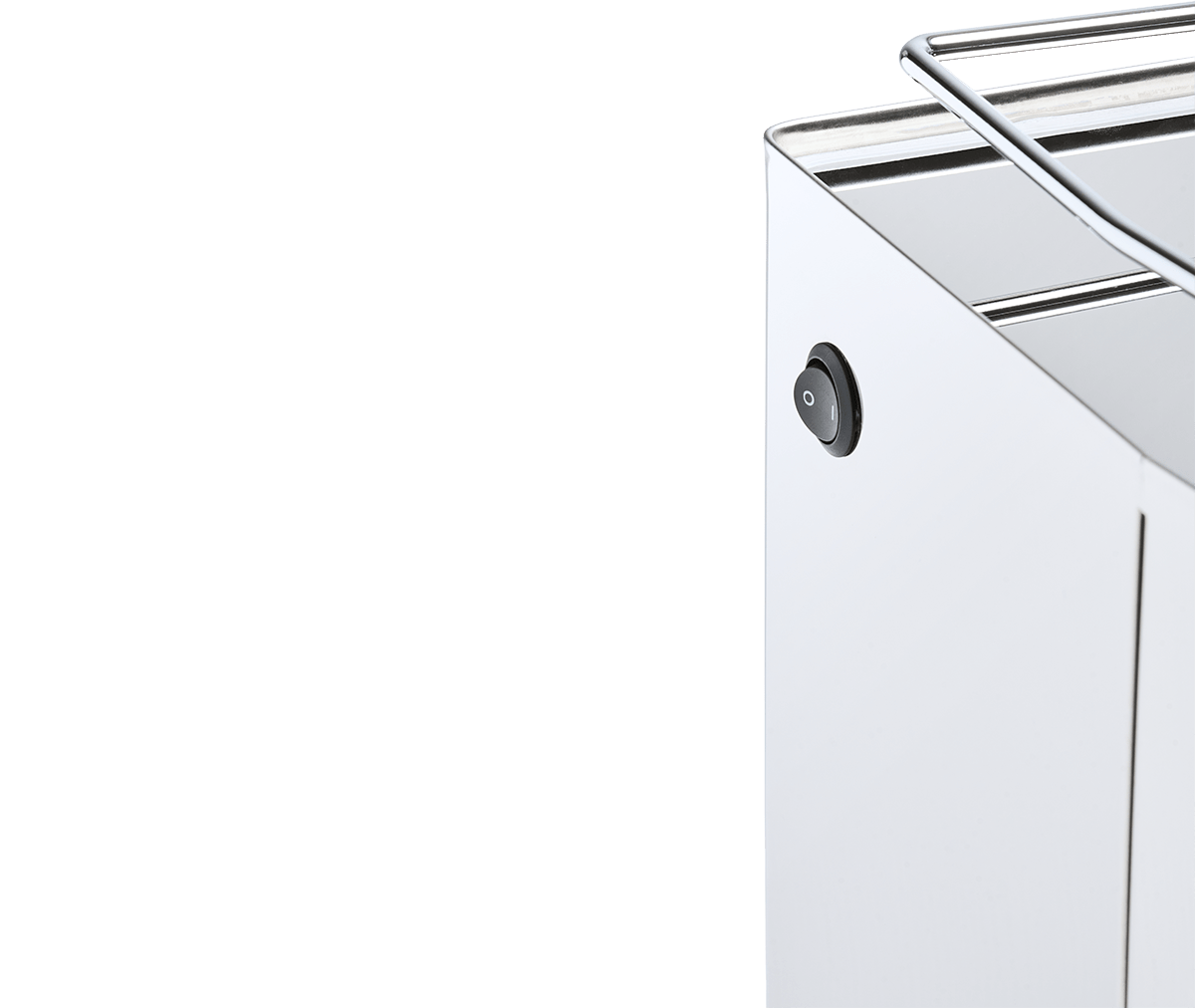

Energy-saving mode with switchable steam circuit

A side switch allows you to turn off the steam/hot water thermoblock when you are only brewing espresso. This saves energy and extends the machine’s lifespan.

Dual quieter vibration pumps

Cassiopea has two vibration pumps with approximately 30% reduced noise level. This provides stable brewing pressure and better control when making multiple drinks consecutively.

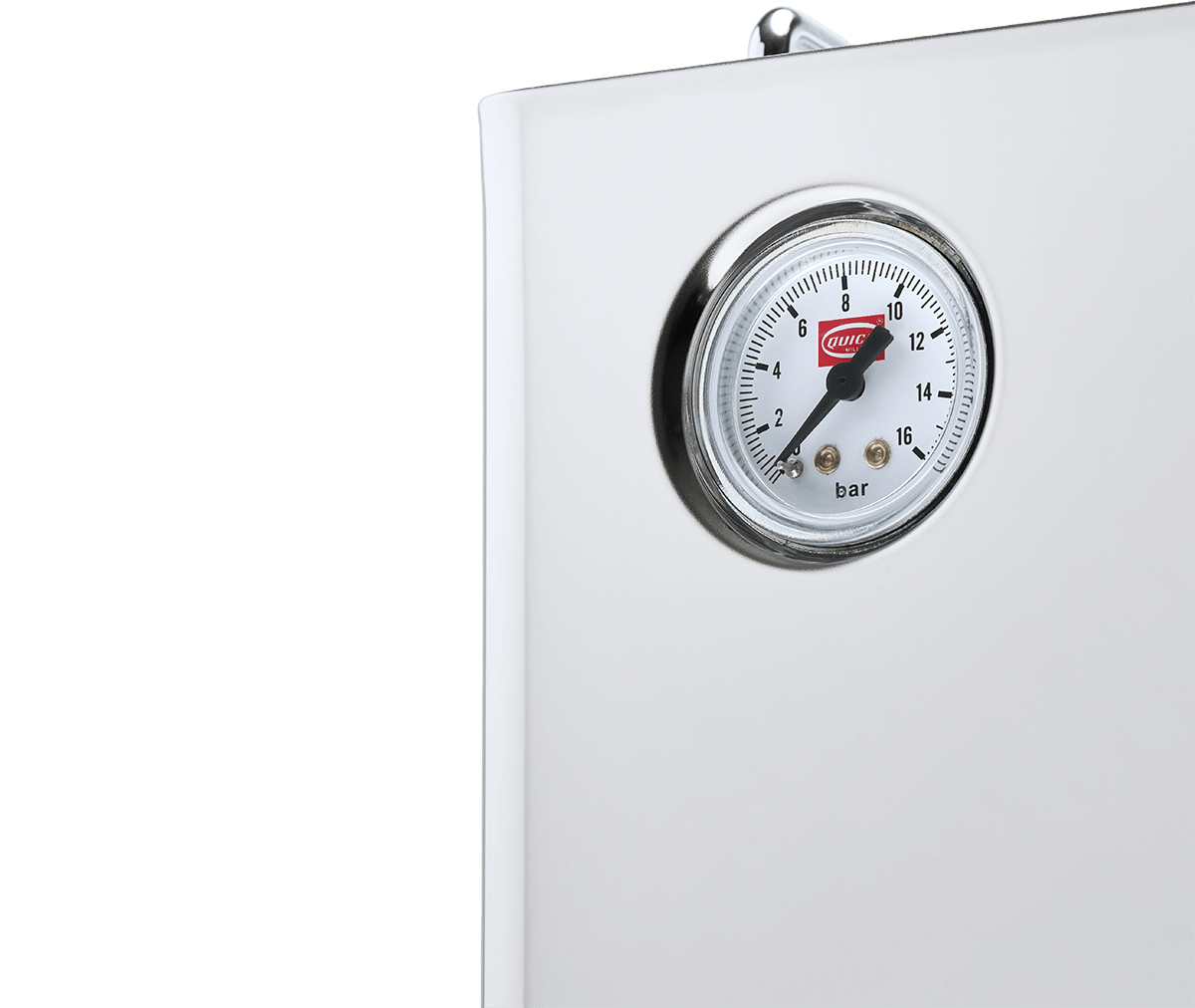

Pressure gauge for real-time control

The manometer (0–16 bar) shows the brewing pressure so you can adjust grind and dosing for an exact and balanced extraction.

Professional steam wand with aerator

The stainless steel steam wand with aerator makes it easy to create silky microfoam for cappuccino and latte – perfect for both beginners and experienced home baristas.

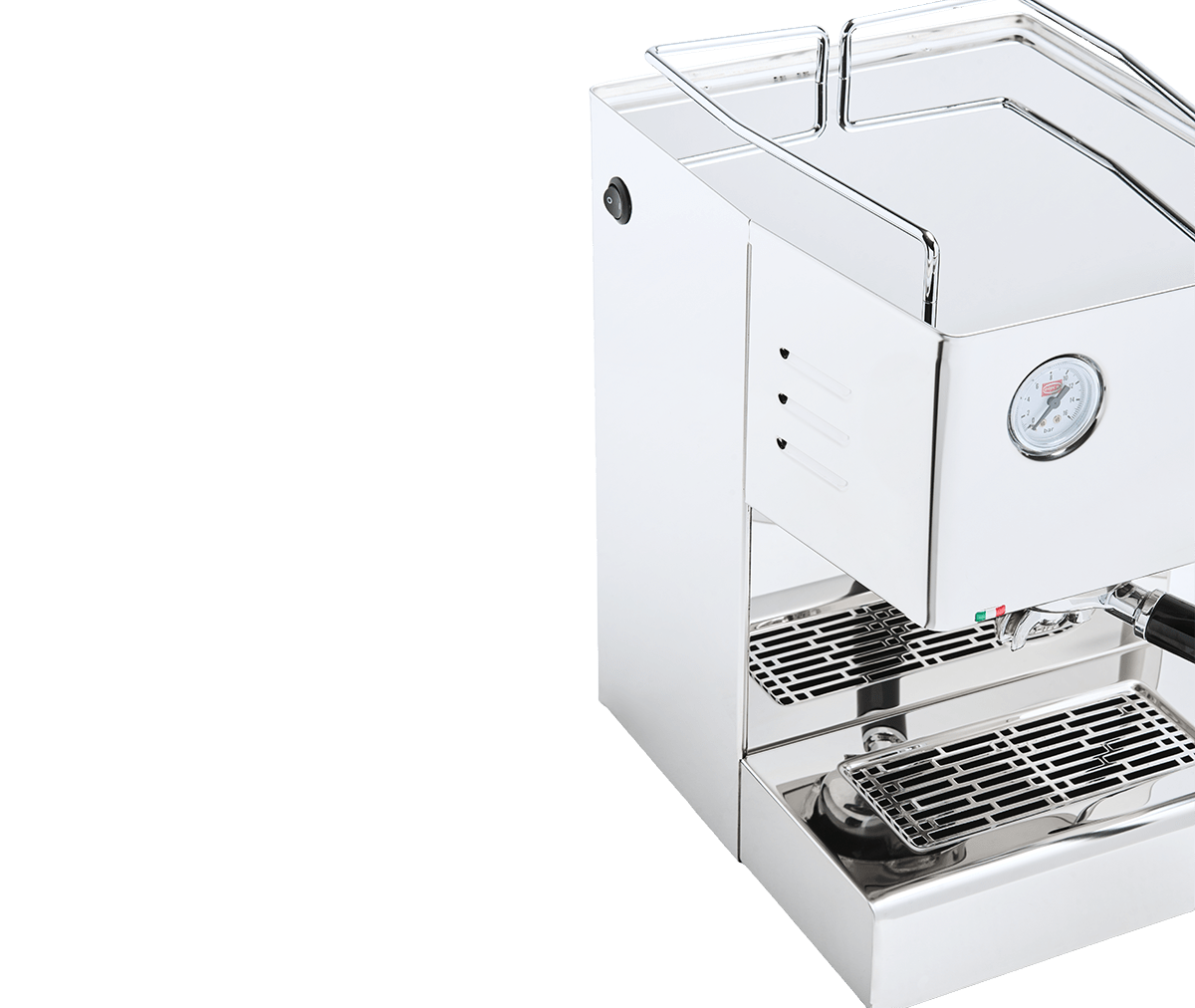

Compact, robust, and stylish design

The fully stainless steel cabinet provides both durability and a premium feel. Despite its two heating systems, the machine is very compact and easy to place.

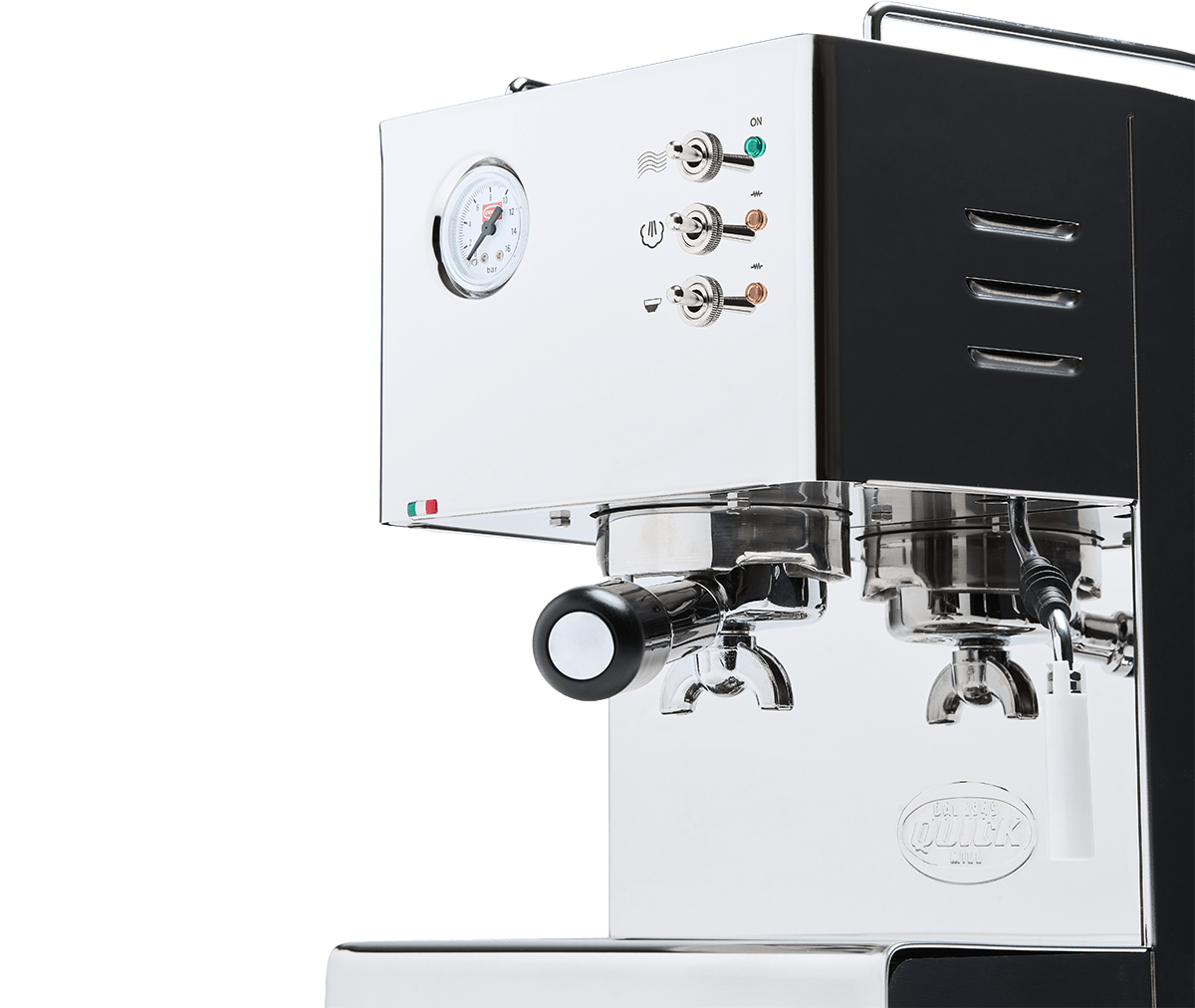

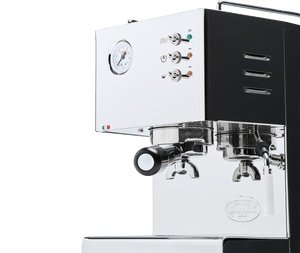

Smooth control panel

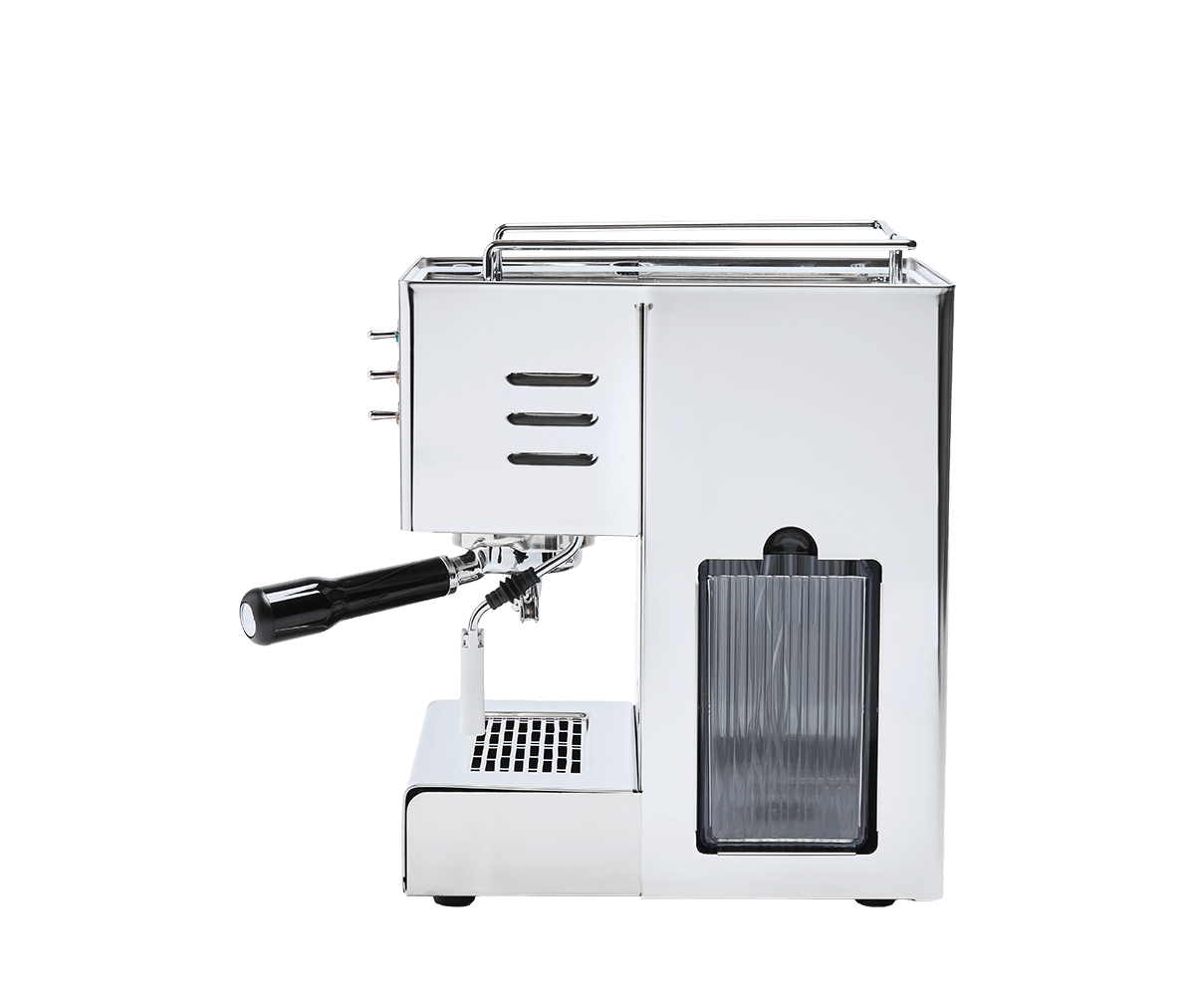

Classic lever controls, clear indicator lights, and a 1.8 L side tank make Cassiopea easy to use and maintain daily.

Specifications

Machine type: Dual thermoblock espresso machine

Boiler / system:

• Die-cast aluminum thermoblock with 0.5 m copper thermocoil (espresso)
• Die-cast aluminum thermoblock with 0.5 m copper thermocoil (steam/water)
• Two separate, independent circuits

Pump: Two vibration pumps (30% quieter)

Material: Fully stainless steel; Quick Mill brew group with O-ring; steam wand with aerator

Controls: Pressure gauge 0–16 bar; lever controls; energy-saving switch (steam thermoblock off); indicator lights

Safety: Thermostat for brewing; thermostat for steam; thermal fuse

Water tank: 1.8 L side access

Dimensions: 247 × 330 × 375 mm

Weight: 11.3 kg

Power: 1750 W

Voltage: 200–240 V (50/60 Hz) / 120 V (60 Hz)
