fam_coffee grinder · Commercial grinder

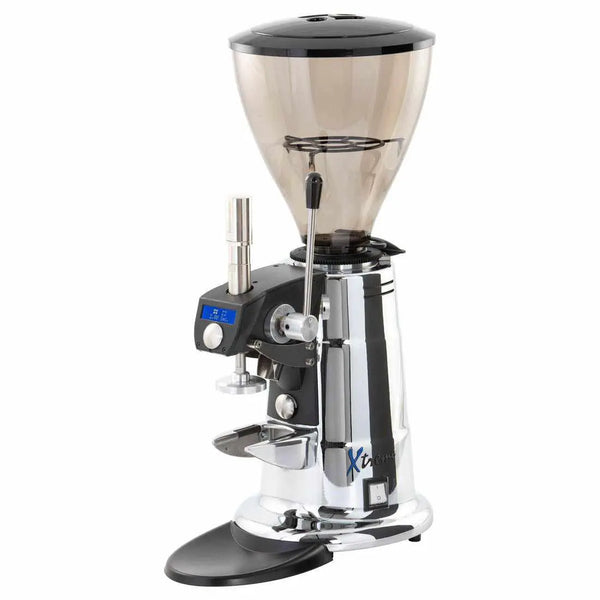

Macap MXDZ Xtreme WT
Manuals, maintenance, water filters, troubleshooting and spare parts for your machine, all in one place.
- Burr type
- Flat
- Burrs
- 75 mm
- Grind adjustment
- Stepless
- Motor
- 520 W
- Bean hopper
- 1.4 kg
- Suitable for
- Espresso
Maintenance
How to look after your MXDZ Xtreme WT
A commercial grinder, such as the Macap M7D, Eureka Helios or BUNN MHG, grinds many kilos a week and needs a daily routine, the dose checked every morning and new burrs according to kg. Here is the schedule and the products we recommend.
Good to know about the Macap MXDZ Xtreme WT
Macap states that the grind should be changed with the motor running if there is coffee between the burrs, and with the motor off if the burr set is empty.
The doses are programmed in steps of 0.05 seconds. Adjust the time when you change beans or grind setting so that the dose stays correct.
Continuous grinding should only last for short periods and never more than one minute at a stretch, so that the motor does not overheat. If the overheating protection trips, let the grinder cool down for at least an hour.
-
Every day
- Empty the bean hopper and wash it by hand
- Brush the spout, the fork and the drip tray
- Check the timer dose with a scale every morning
- Wipe the grinder with a damp cloth
-
Every week
- Grind cleaning pellets, for example Cafetto GC2
- Brush around the adjustment dial
- Check that the fan and ventilation are clear
-
Every month
- Brush the grinding chamber and the spout
- Track kg ground against the burrs' lifespan
- Check the zero point
-
After 250–500 kg
- Replace the burrs according to the manufacturer's kg figure
- Have a technician carry out an inspection and service
- Run in new burrs and reset the timer
Essential maintenance kit
Cleaning detergent, milk system cleaner, blind basket and brush. Everything you need for daily and weekly cleaning.
Cleaning products
Tools
Wear parts for Macap MXDZ Xtreme WT
Original parts that fit your model. Replace the group gasket and shower screen every 6–12 months. How to replace them
Upgrades
A bottomless portafilter shows you instantly if your coffee is channelling. A spring-loaded tamper, a distribution tool and a precision basket give you more even extraction, shot after shot.
Accessories for your MXDZ Xtreme WT
Original accessories and wooden trim made specifically for your machine.
Troubleshooting and guides
What do you need help with?
Regular maintenance
Cleaning
Burrs
- Open the grinder and brush the burrsStep by step.
- Replacing burrs by kgGuideline figures for commercial grinders.
- When should the burrs be replaced?Signs and the manufacturers' kg figures.
- Replacing flat burrsStep by step.
- Calibrate after replacementFind the zero point again.
- Running in new burrsExpect to adjust often.
No guide matches. Ask us and we will help you.
Manuals and spare parts
