fam_coffee grinder · Grinder with built-in scale

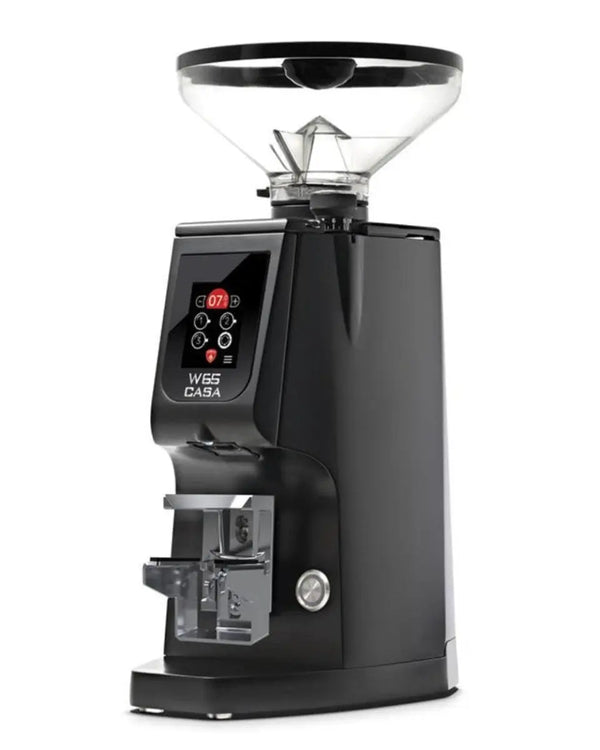

Eureka Atom W 65 Casa
Manuals, maintenance, water filters, troubleshooting and spare parts for your machine, all in one place.
- Burr type
- Flat
- Burrs
- 65 mm
- Material
- Steel
- Grind adjustment
- Stepless
- Suitable for
- Espresso
Maintenance
How to look after your Atom W 65 Casa
A grind-by-weight grinder, such as the Eureka Mignon Libra, Atom W or Baratza Sette 270Wi and Forte, needs the same cleaning as other grinders, plus a clean fork and a scale that is calibrated when the weight drifts. Here is the schedule and the products we recommend.
Good to know about the Eureka Atom W 65 Casa
Hold down the calibration button for 3 seconds, place the portafilter in the fork and press tare. Add the test weight and press the calibration button again to finish.
Turn the dial clockwise for a finer grind and anticlockwise for a coarser grind, in small steps and with a little ground coffee between adjustments. Eureka warns that the grinder can jam if the dial is turned with the motor stopped.
Eureka states that the burrs should be checked and replaced if necessary after 500 kg of coffee. Wash the bean hopper at least once a week.
-
Every day
- Brush coffee off the fork and the scale
- Brush out the spout
- Wipe the grinder with a dry cloth
-
Every week
- Grind cleaning pellets, for example Cafetto GC2
- Empty the bean hopper and wash it by hand
- Check the weight with your own scale
-
Every month
- Open the grinder and brush the burrs
- Check the scale with a calibration weight
- Calibrate the scale if the weight drifts
-
After 300–500 kg
- Replace the burrs according to the manufacturer's kg figure
- Calibrate the zero point after replacement
- Run in new burrs with cheaper beans
Essential maintenance kit
Cleaning detergent, milk system cleaner, blind basket and brush. Everything you need for daily and weekly cleaning.
Cleaning products
Tools
Wear parts for Eureka Atom W 65 Casa
Original parts that fit your model. Replace the group gasket and shower screen every 6–12 months. How to replace them
Upgrades
A bottomless portafilter shows you instantly if your coffee is channelling. A spring-loaded tamper, a distribution tool and a precision basket give you more even extraction, shot after shot.
Accessories for your Atom W 65 Casa
Original accessories and wooden trim made specifically for your machine.
