fam_coffee grinder · Single dose grinder, conical burrs

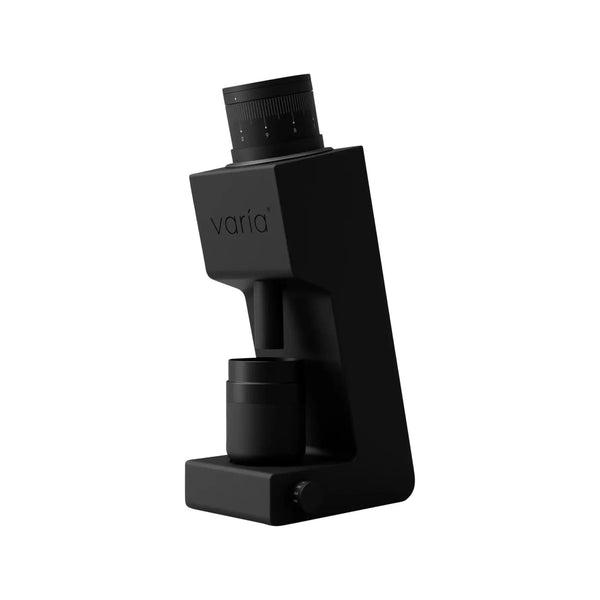

Varia VS4
Manuals, maintenance, water filters, troubleshooting and spare parts for your machine, all in one place.
- Burr type
- Conical
- Burrs
- 53 mm
- Material
- Steel
- Grind adjustment
- Stepless
- Motor
- 200 W
- Bean hopper
- Single dose
- Suitable for
- Espresso and filter
Maintenance
How to look after your VS4
A single dose grinder with conical burrs, such as the Varia VS3 and VS4 or the Fellow Opus, should be blown out after every grind and correctly zeroed after cleaning. Here is the schedule and the products we recommend.
Good to know about the Varia VS4
Turn the adjustment collar clockwise towards finer and stop at the first contact between the burrs. Never force it past that point.
Use the bellows after every grind. With daily, intensive use, the top of the grinding chamber should be brushed out every day.
The speed is set in four levels between 150 and 300 RPM. The grind can be adjusted even while the grinder is running.
-
Every day
- Blow out the grinding chamber with the bellows after every grind
- Brush out the spout and the dosing cup
- Weigh in and out to check retention
- Use RDT when there is static
-
Every week
- Grind cleaning pellets, for example Cafetto GC2
- Wash the dosing cup and lid by hand
- Wipe the grinder with a dry cloth
-
Every month
- Take apart and brush the burrs
- Brush the grinding chamber and the thread
- Find the zero point again
-
When needed
- Replace the burrs when the grind becomes uneven
- Calibrate after replacement
- Run in new burrs with cheaper beans
Essential maintenance kit
Cleaning detergent, milk system cleaner, blind basket and brush. Everything you need for daily and weekly cleaning.
Cleaning products
Tools
Upgrades
A bottomless portafilter shows you instantly if your coffee is channelling. A spring-loaded tamper, a distribution tool and a precision basket give you more even extraction, shot after shot.
