fam_coffee grinder · Single dose grinder, flat burrs

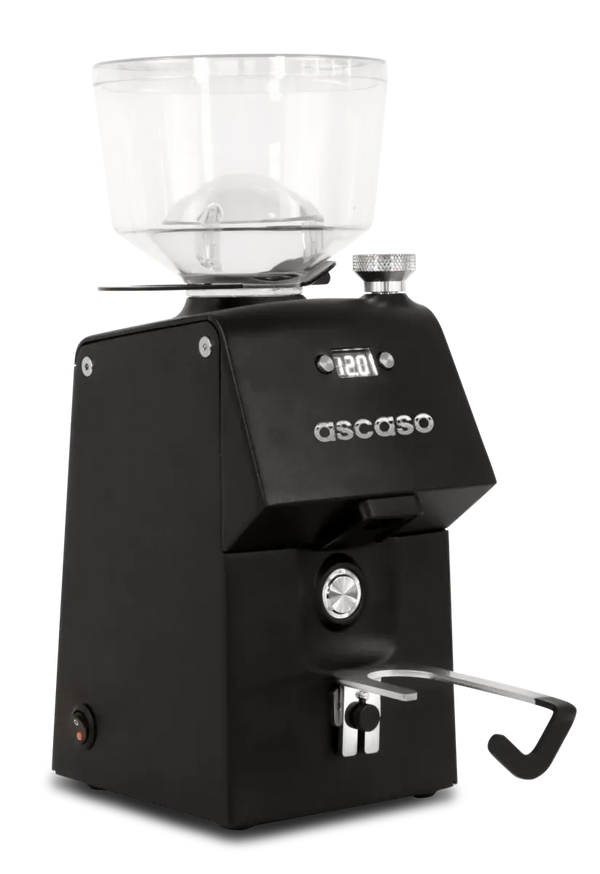

Ascaso H64
Manuals, maintenance, water filters, troubleshooting and spare parts for your machine, all in one place.
- spec_burr type
- Flat
- Burrs
- 64 mm
- Material
- Steel
- Grind adjustment
- Stepless
- Motor
- 245 W
- Bean hopper
- 0.3 kg
- Suitable for
- Espresso and filter
Maintenance
How to look after your H64
A single dose grinder with flat burrs, such as the Eureka Mignon Zero, Timemore Sculptor or Fellow Ode, should be blown out after every grind and kept free of static to keep retention low. Here is the schedule and the products we recommend.
Good to know about the Ascaso H64
Turn the dial clockwise for a finer grind and anticlockwise for a coarser grind, in small steps and with a little ground coffee between adjustments. Ascaso warns that the grinder can jam if the dial is turned with the motor stopped.
The H64 has continuous grinding and three timed doses (D1, D2 and dC), which are set in steps of 0.1 seconds in the settings menu.
Clean all parts that come into contact with the coffee at least once a week. Ascaso specifies replacing the burrs after 400–600 kg of coffee.
-
Every day
- Blow out the grinding chamber with the bellows after every grind
- Brush out the spout and the outlet
- Weigh in and out to check retention
- Use RDT when there is static
-
Every week
- Grind cleaning pellets, for example Cafetto GC2
- Wash the dosing cup and lid by hand
- Wipe the grinder with a dry cloth
-
Every month
- Open the grinder and brush the burrs
- Brush the grinding chamber and the adjustment thread
- Check the zero point
-
After 300–500 kg
- Replace the burrs according to the manufacturer's kg figure
- Calibrate the zero point after replacement
- Run in new burrs with cheaper beans
