La Piccola Linea Cecilia Espresso Machines – Professional Coffee Quality

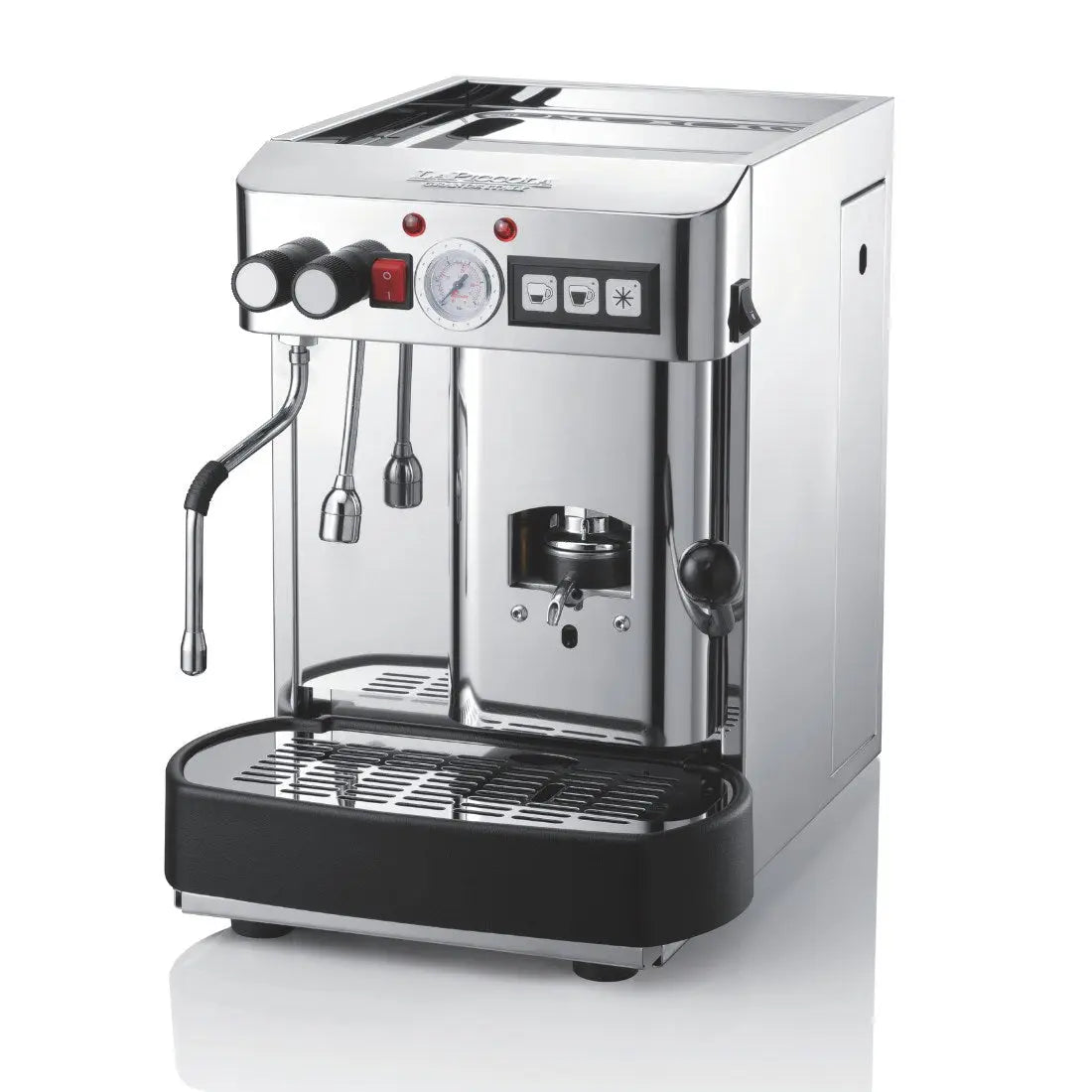

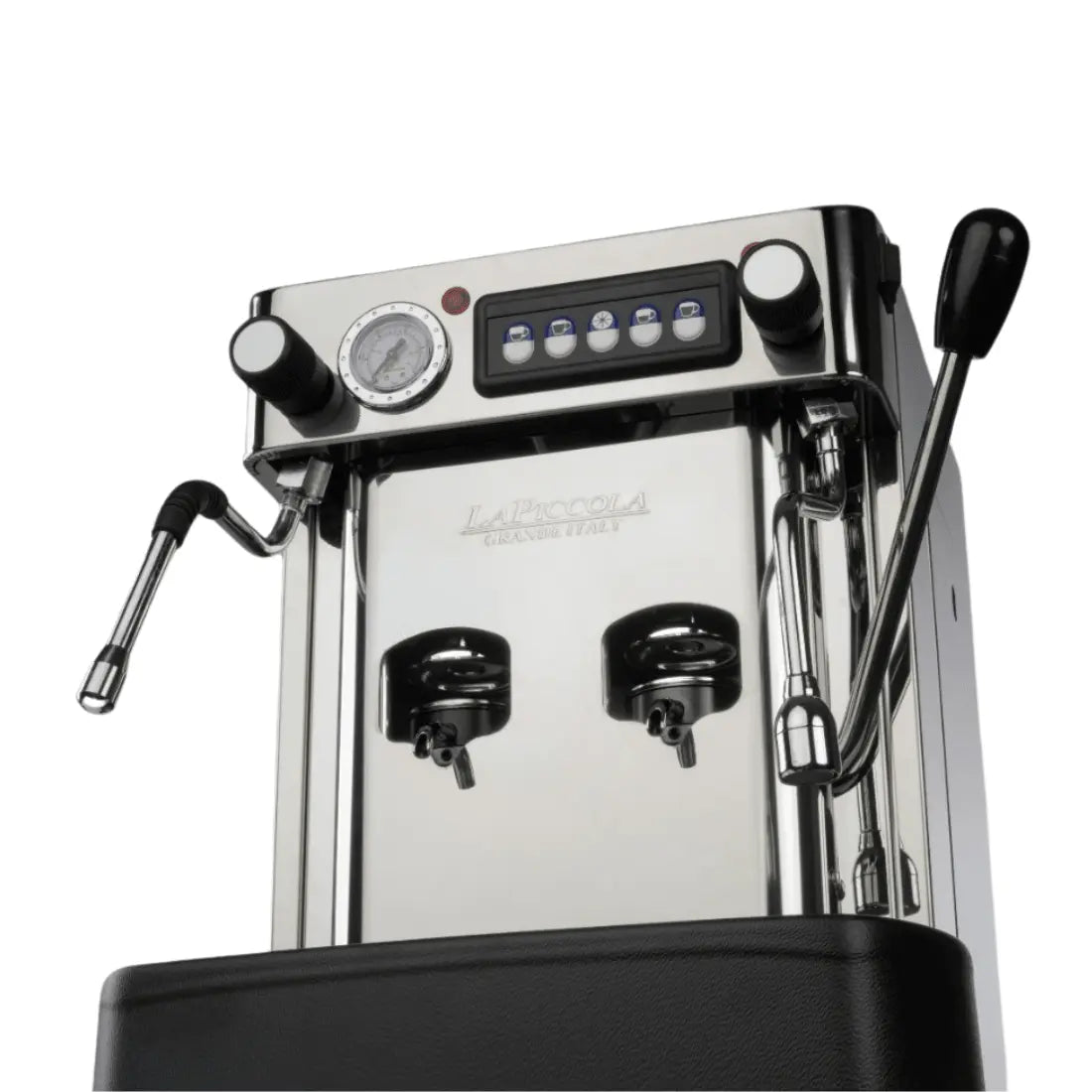

La Piccola Linea Cecilia – professional espresso machine with uncompromising coffee quality

With La Piccola Linea Cecilia, you get a professional espresso machine designed for cafes, restaurants, offices, and other environments where the pace is fast but the demands for flavor are even higher. This series combines elegant Italian design with thoughtful energy technology and stable performance in every cup. Whether you are looking for a compact solution for smaller spaces or an espresso machine for cafe with multiple groups, Cecilia delivers rich espresso, silky milk foam, and consistent results with impressive ease. For those seeking a la piccola coffee machine with a professional feel, this is a very strong choice.



---

Key features



• Energy-efficient design: All models are equipped with separate switches for coffee, steam, and cup warmer. This means you only use the energy actually needed during the workday.
• Smooth pod brewing: The machine is compatible with paper pods, eliminating the need for a grinder and making both workflow and cleaning noticeably easier.
• Manual or automatic operation: Choose between manual control or programmable automatic extraction for consistent serving, cup after cup.
• Compact but scalable: The series is available as one-, two-, three-, or four-group machines, making it easy to adapt to both smaller businesses and higher serving volumes.
• Fast serving in Speed version: Speed models can reduce preparation time by up to 70%, without compromising flavor or temperature stability.
• Dedicated steam boiler: The separate steam boiler delivers dry steam for consistent milk frothing for cappuccino, latte, and other milk-based drinks, with low water consumption.

---

About La Piccola Srl

In Carpenedolo, Italy, La Piccola Srl manufactures espresso machines with a clear focus on precision, innovation, and sustainable operation. We especially appreciate how Linea Cecilia combines professional function with energy-efficient design and a style that feels natural in a premium environment. The result is a series of professional espresso machines appreciated by coffee specialists worldwide.



---

Specifications



Function	Details
Group(s)	1, 2, 3 or 4
Coffee maker capacity	3.5 liters
Operation	Manual or automatic
Pod compatibility	7g single, 14g double
Energy-saving features	Separate switches per group/function
Speed version	Up to 4 cups simultaneously, 70% less energy consumption
Steam boiler	Dedicated for dry steam
Dimensions & Weight	Compact sizes for all models





Basic heating architecture in the Cecilia series



All Cecilia machines are built on the same well-thought-out thermal platform, where three independent heat circuits work together to provide stable temperature and lower energy consumption:

• Heating system for coffee extraction
• Steam/hot water boiler
• Heating plate for cup warmer

Each circuit can be activated separately, so the machine only heats the functions in use. This is especially valuable in professional environments where efficient operation matters over time.

Key heating components

• Thermoblock / stainless steel boiler (~3.5 L)
• Electric heating element
• Thermostat + safety thermostat
• Temperature sensors
• Heat exchanger for brew heads
• Separate steam boiler

The design means the machine does not need to heat more than necessary. This provides quick response, stable brewing, and operation that feels efficient even during long workdays.

---

2. Heating system for coffee brewing (main circuit)

Process for heating water

1. Water is drawn from the tank or directly from the Water source.
2. It is then directed into the heated thermoblock/boiler of 3.5 L.
3. The electric heating element raises the water temperature to approximately 90–95 °C.
4. The heated water is delivered to the brew group through short insulated pipes or Heat exchangers.
5. The pump pushes water through the ESE pod at about 9 bars pressure.

The thermoblock acts as a thermal buffer and helps the machine maintain a stable brewing temperature even when brewing several cups in a row.

---

Thermoblock compared to traditional boiler

Unlike larger café machines with large water boilers, Cecilia uses a Compact heated thermoblock system. For pod-based espresso, this is a solution that offers very high accuracy.

Advantages

• Faster heating
• Lower energy consumption
• Less water volume to heat
• Better temperature stability during pod extraction

Energy savings can be up to approximately 70% compared to traditional espresso machines, since only the circuits needed are heated. This makes Cecilia an interesting option for those who want to buy an espresso machine for professional use without compromising operating economy.

---

3. Thermal design of the brew group

Each brew group has its own heated mass, usually in brass, which helps maintain the correct temperature where it is actually needed.

Functions

• Stabilizes extraction temperature
• Prevents heat loss when the pod holder is inserted
• Maintains constant temperature between brews

In multi-group models, each group often has its own Heat exchanger or its own thermoblock channel. This keeps the temperature stable even when brewing several cups simultaneously under heavy load.

Typical brewing temperature

≈ 92 °C

---

4. Heating system for steam and hot water

The Cecilia machines are also equipped with a separate steam boiler, which is crucial for stable milk frothing in a professional environment.

Purpose

• Steam milk
• Deliver hot water

How it works

1. A separate heating element heats the boiler water to approximately 120–125 °C.
2. The water is converted into pressurized steam (~1–1.5 bar).
3. The steam is delivered through the steam arm.

Since the steam is produced in a separate boiler, the temperature stability in espresso extraction is not affected. This provides a more consistent cup and a smoother workflow when espresso and milk drinks are served in parallel.

This design also prevents the brew circuit from becoming too hot.

---

5. Temperature control system

The temperature is regulated by a system that prioritizes safety and operational consistency:

Thermostats

• Brew thermostat
• Steam thermostat
• Safety thermostat

The safety thermostat cuts power if the boiler overheats.

Heating cycle

1. The heating element is activated.
2. The temperature rises to the set level.
3. The thermostat turns off the heating element.
4. The temperature drops slightly.
5. The heating element is activated again.

This cycle keeps the boiler within a narrow temperature range, which is crucial for consistent espresso and safe daily use.

---

6. Heating sequence at startup

At startup, the machine usually follows this thermal sequence:

1. Main power ON
2. The heating element starts heating the thermoblock
3. Indicator light shows the heating phase
4. The water circuit fills
5. The boiler reaches brewing temperature
6. The machine is ready to use

Heating time is normally 5–10 minutes depending on model. For a professional pod machine, this is fast, especially in environments where multiple servings are to be made in a short time.

---

7. Differences in heating systems between group configurations

Cecilia 1-group

This is the series' smallest configuration and fits well where space is limited but espresso demands are still high.

Heating characteristics

• One thermoblock circuit for brewing
• 3.5 L boiler
• One brew group
• Separate steam boiler

Typical power

≈ 2200 W

Best suited for

• offices
• small cafés or bars

---

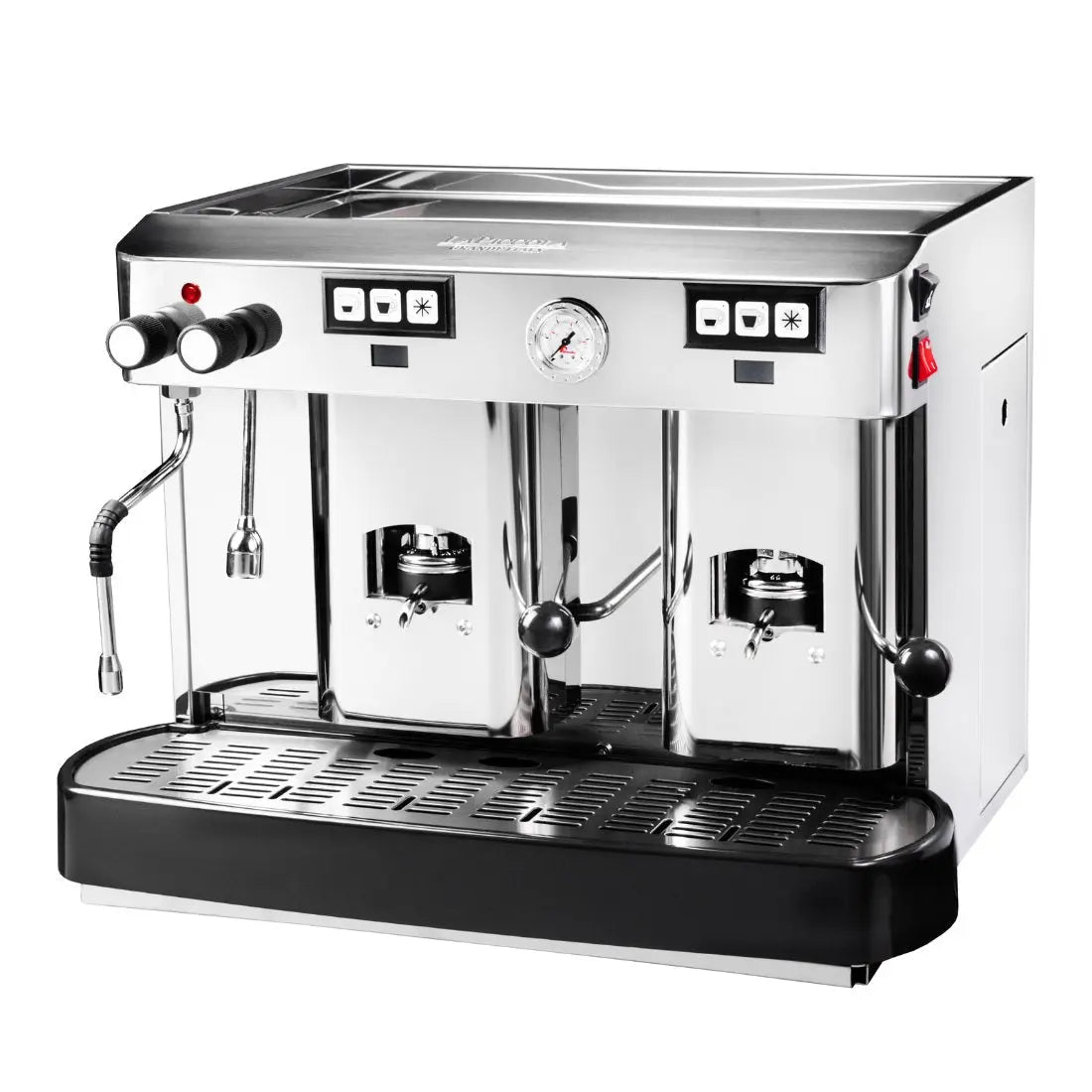

Cecilia 2-group

Thermal changes

• Two independent brew groups
• Often separate Heat exchangers for each group
• Larger water tank
• More powerful heating element

Advantages

• Ability to brew two cups of coffee simultaneously
• Stable temperature in both groups

Power

≈ 2900–3600 W depending on model.

---

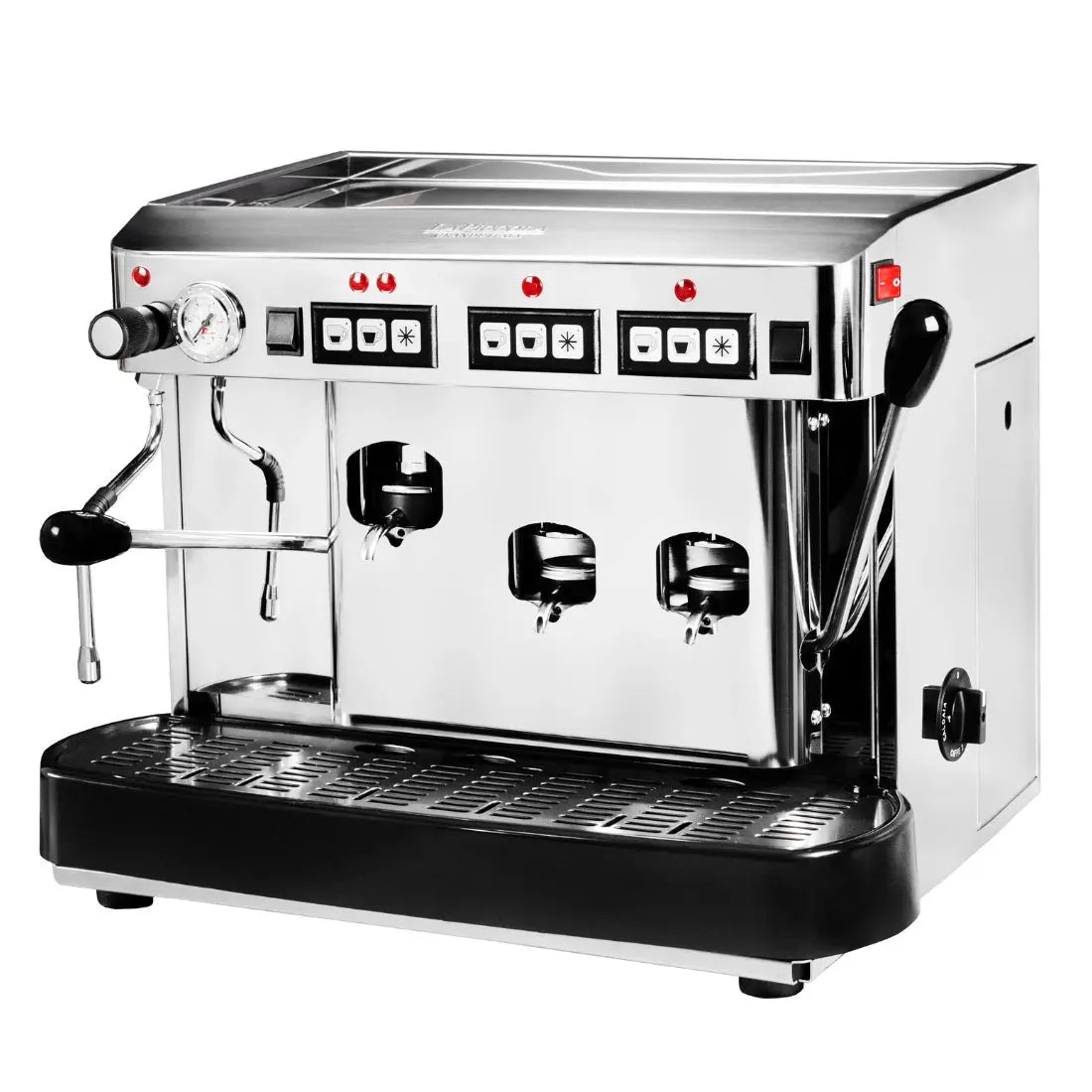

Cecilia 3-group

The same thermal principle, but with higher capacity for serving in a steady and fast flow.

• Three Heat exchangers for brew groups
• Higher electrical load
• Larger internal water system

Design goals

To maintain identical temperature in each group even when the machine operates under high load.

---

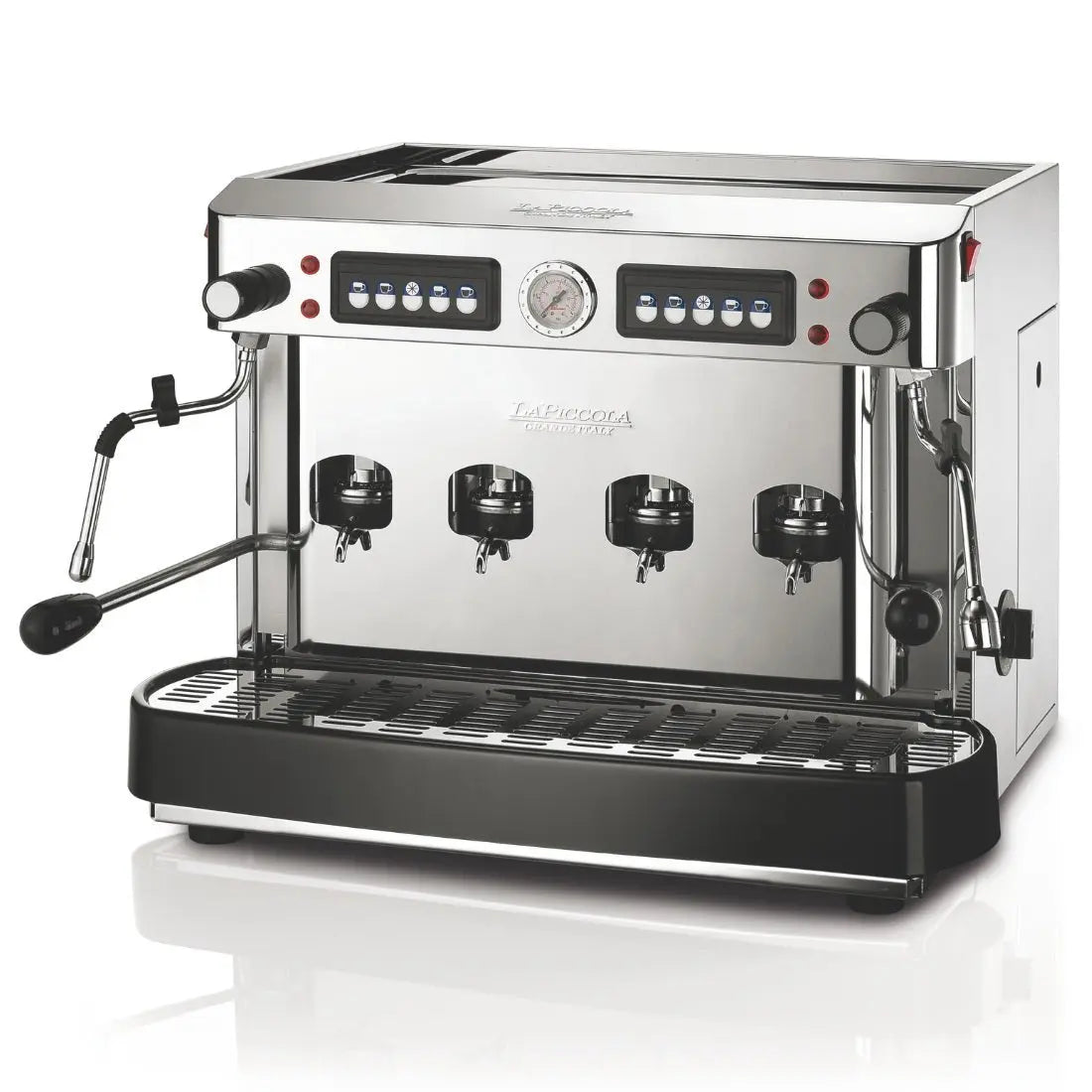

Cecilia 4-group

The largest system in the series, developed for continuous production in more demanding serving environments.

The heating system includes

• Four independent brew groups
• Larger thermoblock / higher heating capacity
• Higher energy consumption
• Large thermal mass

This configuration is built for continuous operation in a café environment. It is also worth considering that larger group configurations are mainly the right choice when the capacity need truly justifies it.

---

8. Why the heating system works well with pods

ESE pods require less thermal variation than ground coffee, because several variables are already standardized:

• The dosing is fixed (7 g or 14 g)
• The grind size is standardized
• The flow resistance is constant

Therefore, the Cecilia system focuses on:

• stable water at 90–92 °C
• fast temperature recovery
• minimal energy consumption.

---

9. Features for thermal efficiency

The Cecilia series improves energy efficiency through several concrete solutions:

Independent power switches

Separate switches control:

• coffee boiler
• steam boiler
• cup warmer

This means that only necessary parts are heated. In practice, this results in lower energy use and better control over the workday.

---

Thermoblock heating

Small heated mass → faster temperature stabilization.

---

Pod brewing

No coffee grinder needed → less heat loss from flushing and cleaning.

---

10. Simplified flowchart of the heating



Water tank
     │
     ▼
Pump
     │
     ▼
Thermoblock / brew boiler (≈92 °C)
     │
     ├──► Group 1 Heat exchanger → Brew head
     ├──► Group 2 Heat exchanger → Brew head
     ├──► Group 3 Heat exchanger → Brew head
     └──► Group 4 Heat exchanger → Brew head

Separate circuit:

Steam boiler (120 °C) → Steam wand



✅ Summary

The heating system in La Piccola Cecilia uses a Compact thermoblock for brewing combined with a separate steam boiler, as well as independent heating circuits for each brew group in multi-group machines.

The modular design provides:

• stable brewing temperature (~92 °C)
• fast heating
• possibility of simultaneous brewing in multiple groups
• high energy efficiency.





The hydraulic circuit in La Piccola Cecilia ESE-pod espresso machines (1–4 groups)



The hydraulic circuit controls how the water moves from the water tank to the coffee pod and then to the cup. The system is designed to deliver stable pressure (~9 bar) and precise water volume when extracting ESE pods, which is an important reason why this commercial espresso machine works so predictably in practice.

Below we go through the complete hydraulic path step by step: from the water tank to the pump, then to the solenoid valve, and finally to the brew group.

---

1. Water source (tank or water network)

The hydraulic circuit starts with the water supply.

Two configurations occur:

Internal water tank

Most Cecilia machines use a Large removable water tank.

Process:

• The water is in the tank.
• A silicone water intake hose draws water from the bottom.
• The water passes through a mesh filter that prevents particles from entering the pump.

Direct connection to the water network (optional on larger models)

The water enters through:

• pressure regulator
• check valve
• water filter or softener

Purpose:

to protect the hydraulic circuit from limescale and particles.

---

2. Vibration pump (pressure generation)

After that, the water reaches the vibration pump (usually of the ULKA type).

Function

• Generates a maximum of ≈15 bar pressure
• The actual brew pressure becomes ~9 bar after restrictions in the system

How the pump works

• An electromagnetic coil drives a piston back and forth.
• The piston oscillates about 50–60 times per second.
• Each stroke pushes water forward through a one-way valve.

Typical pump specifications

Parameter	Value
Pump type	vibration pump
Max pressure	15 bar
Brew pressure	~9 bar
Flow	600–700 ml/min

The pump operates only when the brew button is activated, providing clear control and minimizing unnecessary system load.

---

3. Check valve after the pump

Directly after the pump is a check valve (non-return valve).

Purpose

• Prevents hot water from the boiler from flowing backward
• Keeps the pump filled with water
• Stabilizes pressure during brewing

Without this valve, the pump would lose pressure stability, which in turn negatively affects extraction.

---

4. Heating system (thermoblock / brew boiler)

The water then enters the heated thermoblock or brew boiler.

Inside this component:

• The water flows through heated channels or heat exchanger tubes.
• The electric heating element keeps the metal mass at about 92 °C.
• The water quickly reaches brewing temperature.

Important design principle

Because ESE pods require very stable temperature, the heated metal mass acts as a thermal stabilizer, contributing to the consistent cup quality the series is known for.

---

5. Distribution manifold (machines with multiple groups)

In 2-, 3-, and 4-group Cecilia machines, the hot water leaves the boiler and continues into a distribution manifold.

The manifold divides the water flow between several brew groups so that each group receives a controlled and balanced inflow.

Example (4 groups)

Boiler
   │
   ▼
Distribution manifold
   ├── Group 1
   ├── Group 2
   ├── Group 3
   └── Group 4

Each branch has its own solenoid valve.

---

6. Solenoid valve (flow control)

Each brew group uses a three-way solenoid valve.

This is one of the most important components in the hydraulic circuit, as it controls both water flow and pressure relief.

Functions

• Start and stop water flow
• Release pressure after brewing
• Dry the coffee pod

How the solenoid valve works

When the brew button is pressed:

1. An electrical signal activates the solenoid coil.
2. The valve opens.
3. Hot pressurized water flows to the brew group.

When brewing ends:

1. The coil is deactivated.
2. The valve closes the inlet.
3. The pressure is released to the drain line or drip tray.

Result

• immediate pressure drop
• almost dry pod
• easier to remove the pod.

---

7. Brew group (pod holder)

After the solenoid valve, the water reaches the brew group.

Inside the brew group there is, among other things:

• brass diffuser plate
• pod holder
• shower screen
• gasket

Flow sequence

1. The water is spread over the shower screen.
2. It saturates the ESE pod evenly.
3. The coffee is extracted under ~9 bars of pressure.
4. The espresso flows out through the pod holder's spouts.

---

8. Pressure relief system

When extraction ends, the three-way solenoid valve opens the exhaust port.

This causes:

• a sudden pressure drop
• remaining water is led to the drip tray
• the pod becomes almost dry

That is why ESE pods come off easily in Cecilia machines, saving time in serving and cleaning.

---

9. Complete hydraulic flow diagram

Simplified circuit

Water tank / water network
       │
       ▼
Inlet filter
       │
       ▼
Vibration pump
       │
       ▼
Check valve
       │
       ▼
Thermoblock / boiler
       │
       ▼
Distribution manifold
       │
       ▼
3-way solenoid valve (per group)
       │
       ▼
Brew group / shower screen
       │
       ▼
ESE pod
       │
       ▼
Espresso → cup

Pressure relief path

Solenoid outlet
       │
       ▼
Drain hose
       │
       ▼
Drip tray

---

10. Hydraulic behavior in machines with multiple groups (1–4)

Machine	Pump	Solenoid valves	Brew groups
1 group	1	1	1
2 groups	1 larger pump	2	2
3 groups	1 high-capacity pump	3	3
4 groups	1 or 2 pumps	4	4

Larger machines can use dual pumps to keep pressure stable when multiple groups brew simultaneously.

---

11. Why the Cecilia system's hydraulics are reliable

The hydraulic design in the Cecilia series focuses on features that make a real difference in daily operation:

Simplicity

Few moving parts → fewer failures.

Short water path

Reduces heat loss and scale buildup.

Independent solenoid valves

Allows brewing simultaneously without noticeable pressure loss.

Pressure optimized for pods

ESE pods require stable flow rather than adjustable flow, and Cecilia works very convincingly exactly there.

---

✅ Simply explained:

Water is drawn from the tank → pressed by the pump → heated in the thermoblock → led through a solenoid valve → distributed over the ESE pod → extracted as espresso → and the pressure is released into the drip tray.



Compare professional pod machine

Read our blog post here where we compare La Piccola Cecilia and Aroma Professional







Frequently asked questions

▾Is La Piccola Cecilia a professional espresso machine for café and restaurant?

Yes, the Cecilia series is developed for professional environments and is available in 1, 2, 3, or 4 groups to suit everything from smaller servings to higher capacity.

▾What type of coffee does this La Piccola coffee machine use?

The machine is made for coffee pods and is compatible with ESE/paper pods in 7 g single and 14 g double doses, providing fast and even brewing.

▾How does the heating work in this professional espresso machine?

It uses a thermoblock for brewing, a separate steam boiler, and independent heat circuits for coffee, steam, and cup warmer, providing fast heating and good energy efficiency.
