Quick Mill Elevate V

Quick Mill Elevate V is an advanced dual boiler that takes your espresso experience to the next level. With two separate stainless steel boilers, precise PID control, and a quieter vibration pump, you get stable temperature, strong steam power, and high precision in every shot. Pre-infusion, OLED display, and the option for a fixed water connection make the Elevate V a complete choice for home baristas who want professional control. A machine where flavor, technology, and elegance meet — created for those who demand more from every cup.

Features & Benefits

Dual boiler system – total heat stability and powerful steam

The Elevate V has two insulated stainless steel boilers:

• 0.75 L for brewing
• 1.6 L for steam and hot water

This provides stable brewing temperature and access to powerful steam simultaneously. A clear upgrade from single boiler and HX machines.

PID control and programmable pre-infusion

The PID system maintains the brewing temperature precisely and allows you to adjust it for different beans. Pre-infusion wets the coffee bed before pressure builds up, resulting in more even extraction, fuller body, and clearer aromas.

Quieter vibration pump – stable pressure delivery

Quick Mill’s own vibration pump reduces noise levels by about 30%. It delivers consistent brewing pressure and provides a calmer espresso ritual without compromising performance.

OLED display with full control

The intuitive display shows temperatures, shot timer, water level, and settings such as standby, eco mode, and pre-infusion. Simple, fast, and clear.

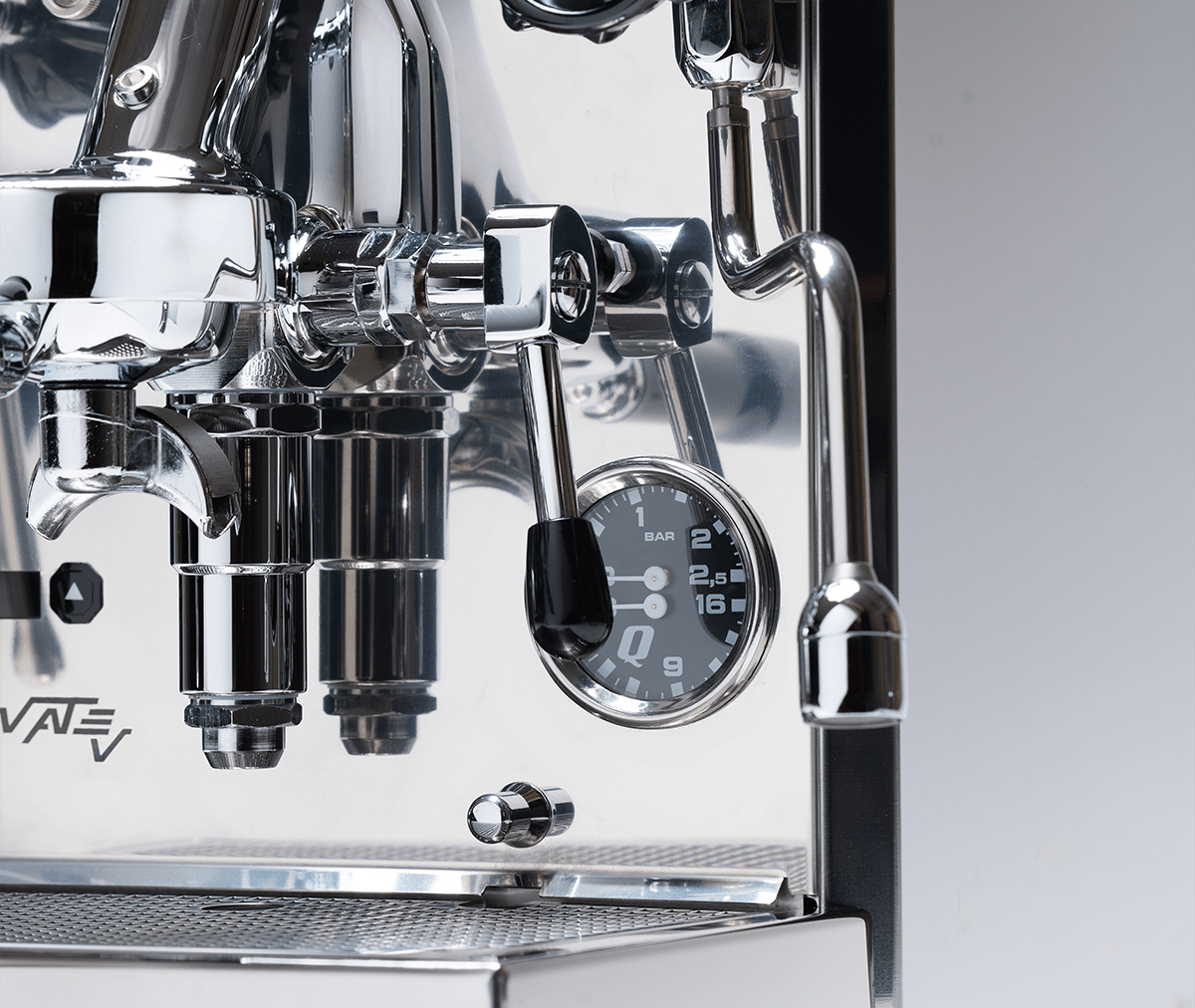

Dual pressure gauges

Separate gauges for both boiler pressure and pump pressure make it easier to fine-tune extraction and monitor the machine’s performance.

Ergonomic water and steam controls

The Elevate V is equipped with Quick Mill’s exclusive ergonomic valves and anti-burn wands — perfect for milk frothing and safer handling.

Tank and fixed connection – choose your workflow

The machine comes with a 3-liter tank but is also ready for a fixed water connection (kit optional). Perfect for long brewing sessions without interruption.

Premium stainless steel design

A clean steel cabinet, robust construction, and classic lines make the Elevate V as beautiful as it is functional on the kitchen counter.

Specifications

Machine type: Dual boiler

Boiler / system: 0.75 L insulated brewing boiler; 1.6 L insulated steam/hot water boiler (stainless steel)

Pump: Vibration pump (30% quieter)

Material: Fully stainless steel; Quick Mill brew group with stainless steel mushroom; anti-burn steam and water wand; ergonomic controls

Controls: PID; OLED display; shot timer; level sensor; programmable pre-infusion; standby; eco mode; dual gauges (boiler/pump); switchable steam boiler; on/off lever; indicator lights

Safety: Temperature probe (PID); vacuum valve; safety valve; two resettable thermostats

Water tank: 3 L; option for fixed connection

Dimensions: 304 × 502 × 358 mm

Weight: 25 kg

Power: 1550 W

Voltage: 200–240 V (50/60 Hz) / 120 V (60 Hz)
